Medical Copper Pipes

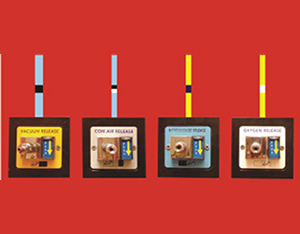

Medical Gas Outlet

Unipro

Medical Gas Outlets shall accept only corresponding Ohmeda, DISS, Chemetron or Puritan-Bennett style quick connect adapters. Outlets are designed with universal rough-in assembly for interchangeability on different quick connects without removing the entire outlet.

Main Features:

Accepts Only Ohmeda, Chemetron, Puritan-Bennet, DISS Style Gas Specific Probes.
Unique Pin Index for Gases to prevent Interchanging of Gas Service.
Universal Rough-In Assembly.
Colour Coded for Easy Gas Identification.
360 degree Swivel on the Inlet Pipe for easy Installation.
100% Tested and Individually Packaged.
Medical Gas Outlets Conform to HTM 02 - 01/ NFPA 99C / EN / DIN / ISO 7396 – 1.

Zone Valve Box

Key Features:

Zone Valve Box are designed to house shut-off
valves where each valve controls different gas service.
Gas service is distinguished by label colours.
14-gauge steel valve box.
Accepts valve sizes ½ - 2 inches.
Copper tubing extensions.
Full port valves for high flow.
Pressure Gauges ordered separately.
All parts are cleaned and tested 100% for leakages.

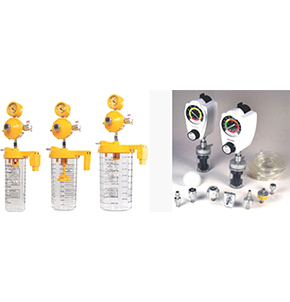

Suction Regulator

Key Features :

Suction Regulator complete with polycarbonate bottle of 600 ml capacity.
Glow in dark vacuum gauge.
Clockwise & Counter clockwise configurations available.
Vacuum trap prevents overflow of waste fluid from entering the suction regulators.
Antimicrobial protected control knobs.

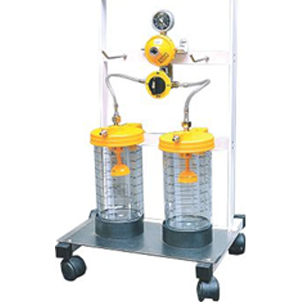

Theatre Suction Trolley

Features

Theatre Suction Trolley is a potable suction unit.
Suction Regulator with glow in dark vacuum gauges.
Equipped with two polycarbonate jars of 2000 ml capacity.
Vacuum trap prevents overflow of waste liquid from entering the suction regulator.
Collection Jars are mounted on stand for easy transport.

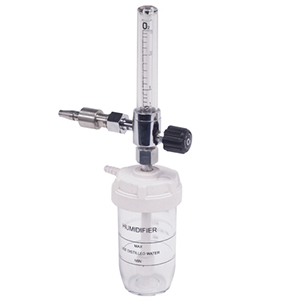

Oxygen Flowmeter with Humidifier

Features

Polycarbonate flow tube and outer cover are impact resistant for maximum durability and service life.
Composed of flowmeter and oxygen humidifier; free combination for the detachable.
Gas Flow Marking on Polycarbonate Tube.
No contamination of air into the system.
Maximum Flow Rate of 15 LPM.
Inlet connection with filter.
Nasal cannula optional.
Built-in antimicrobial protection on flowmeter control knob.

Technical Data

Hydraulic Test Pressure – 60 Bar.
Maximum Working Pressure – 0-10 Bar.

Main Component Detalis

Brass Body.
Ball SS 304.
Chrome Plated.

Bed Head Panel

Features

Aluminium alloy, powder coated to protect against oxidation.
Single & dual trunks available.
Gas and electrical channels are separated by trunks to ensure safety.
Easy installation and maintenance.
Designed according to customer requirements.
100% tested for leakage.

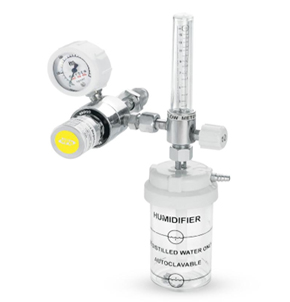

Medical Gas Pressure Regulator

Medical Gas Pressure Regulator with pressure gauge for showing inlet gas pressure from gas cylinder & flowmeter at regulator outlet for continuous flow of gases in LPM.

Features

Material – Brass Body with Aluminium handle.
Working Pressure – 0-200 Bar.
Output Pressure – 0-4 Bar.
Delivery Flow – 0-15 LPM.
In-built Safety Relief Valve.
Regulator Inlet Connection – 5/8” BSP.
Warranty – 3 year.
